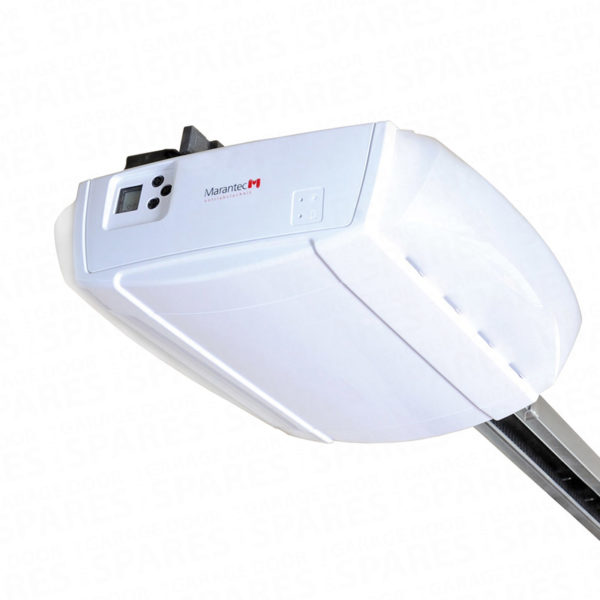

Marantec 370 Motor Head Only With SZ12 Boom

MAO6035
toothed-belt-rail-LR

Marantec 370 Motor Head Only With SZ12 Boom

£349.90

Available

SKU: MAO6035/MAO6120 Categories: , ,
  • Description

Description

Comfort 370 – Operator system for garage doors
Comes with SZ12 belt boom (2725mm Travel Length)

Motor unit Comfort 370

A high speed version of the standard 370 opener offering a typical door opening time of 9.5 seconds as opposed to 15 seconds using the standard model.

This feature makes the 370 an ideal choice where local conditions require rapid opening and closing of the door.

Operator system for garage doors – domestic use

  • For up-and-over doors up to a door width of 5000 mm and a door weight of 185 Kg
  • For single-skinned sectional doors up to a door width of 5500 mm and a door weight of 185 Kg
  • For double-skinned sectional doors up to a door width of 5500 mm and a door weight of 185 Kg
  • For retractable up-and-over doors and canopy doors up to a door width of 5000 mm, a door height of 2250 mm and a door weight of 185 Kg
  • For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 2 of the RAL quality mark)
  • For operator rails with roller chains, ball rope or toothed drive belts

Package

  • Motor unit Comfort 370 with multbit remote control 868 MHz
  • Digital 302 Mini hand transmitter, 2-channel
  • Digital 313 Micro hand transmitter, 3-channel
  • Universal mounting kit for up-and-over doors and sectional doors

Electrical details

  • Nominal voltage 230 V
  • Nominal frequency 50 Hz
  • Power consumption 1,1 A
  • Power input in operation 0,25 KW
  • Power input stand-by 1,7 W
  • Operation mode (duty cycle) KB 2 min.
  • Control voltage 24 V DC
  • Protection category motor unit IP 20
  • Protection class II

Mechanical details

  • Push and pull force 850 N
  • Door travel speed 235 mm/sec.
  • Opening time (door-specific) approx. 9,5 sec.

General details

  • Measurements (Motor unit) 220 x 125 x 395 mm
  • Weight 4,5 kg
  • Range of temperature -20°C to +60°C
  • Illuminant LED (extendable) 40 / 80 W

Functions

  • Economy mode
  • Reference point technique
  • Electronic travel cut-out
  • Soft start/soft stop
  • Push-open security
  • Anti-blocking device
  • Excess travel stop
  • Release from inside
  • Connection for pushbuttons, code keypads and key switches
  • Automatic cut-out `Open` and `Close` separately programmable
  • Partial opening programmable
  • Door travel speed `Open` and `Close` separately programmable
  • Soft run position `Open` and `Close` separately programmable
  • Soft run travel speed `Open` and `Close` separately programmable
  • 3 minutes light programmable for lighting the garage
  • Automatic timer function
  • Connection potential-free limit switch information

Retrofitting of potential-free signal relay possible for;

  • Signal light
  • Wiping impluse
  • 3 minutes light
  • Final position message
  • Alarm system
  • Malfunction message
  • Error message
  • Reset function
