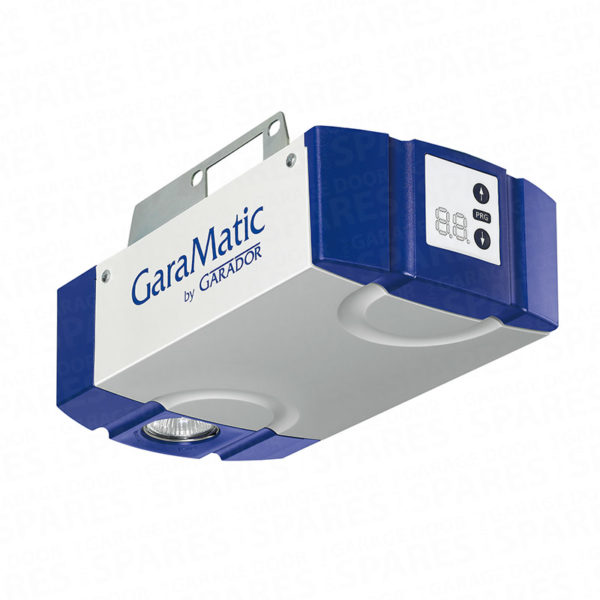

Garage Door Opener – Garamatic 10 Head Only

The GaraMatic 10 is a reliable and secure automatic operator that comes complete with two hand transmitters, so you can open your garage door without having to leave the comfort of your car. The bi-directional radio technology provides a more reliable signal that can be used over longer distances, allowing you to open your garage from further away. This operator complies with the latest European safety standards, is maintenance free and has a super smooth quiet door action. It is also highly secure with an integral anti-burglar device as standard. The GaraMatic 10 is perfectly matched with Garador up & over and sectional garage doors and are prepared for easy installation.

  • Comes with a 5 button and 2 button hand transmitter (black) as standard
  • 50% faster than other operators with max opening speed of 22cm/ second
  • Half open function for ventilation
  • Adjustable soft start and soft stop
  • Automatic safety reversal
  • Remote status query feature indicates whether your garage door is open or closed
  • Bisecur technology provides a more reliable signal that can be used over longer distances. It also provides additional security ensuring no one can copy your signal
  • Low power consumption

Garage door operator for domestic use - not suitable for commercial use! For dry areas only.

No. of parking operations:

Max 25 door cycles (open/close) per day or 12 parking operations

Operator details

  • 24 V DC gear drive
  • Mains voltage 230 – 240 V AC, 0.2 kW
  • Push and pull force 650 N, peak force 800 N
  • Opening speed 22 cm/s

Electronic control unit:

  • Microprocessor control
  • Automatic adjustment of safety cut-out and travel limits
  • Adjustable soft start and soft stop
  • 7-segment display
  • Operator light and second opening height adjustable
  • Automatic timer adjustable
  • Hold-open time 10 – 180 sec after activation
  • Impulse control

Operator boom FS 10 (at additional cost):

  • Self-supporting steel boom with polyester/polyamide toothed belt
  • Plastic slide carriage and automatic belt tensioner
  • 1-piece, completely pre-assembled

Standard equipment:

  • With 5-button and 2-button Bi-directional hand transmitters
  • Integral 3-channel receiver in 868.3 MHz for functions impulse
  • Operator lighting and second opening height
  • Each hand transmitter factory-coded individually from over 1 trillion combinations
  • Quick release operated from the inside connecting cable with CEE plug
  • Integral garage light with factory set 2-minute light
  • Radio operated
  • Door security kit as safety device
  • Universal installation bracket for up-and-over doors and sectional doors


  • Aluminium and plastic

Temperature range:

  • From - 20°C up to + 60°C

Note: Installation of photocell is required if automatic timer is activated
