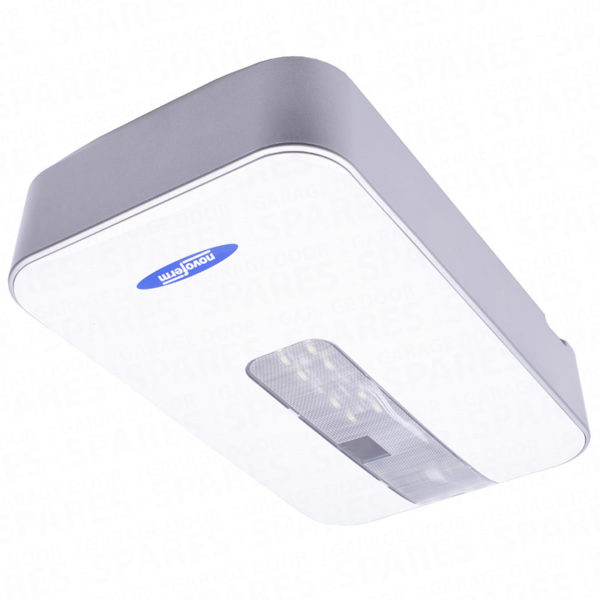

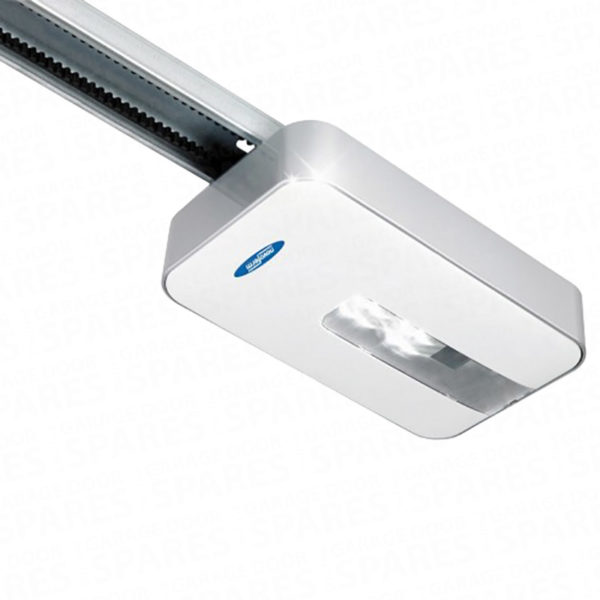

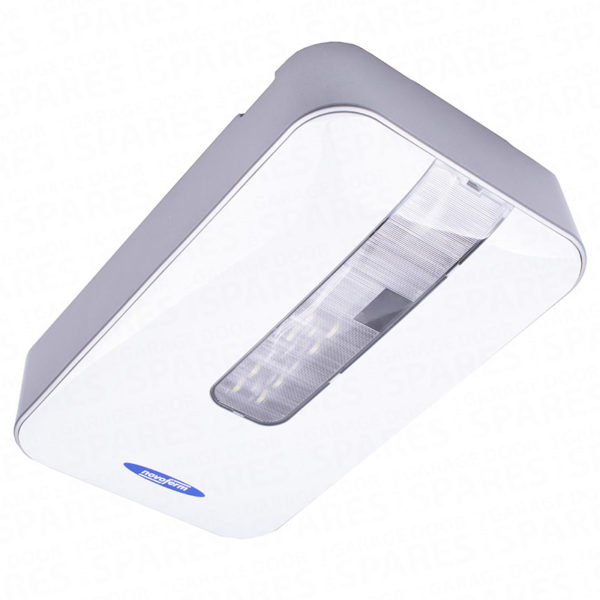

Garage Door Operator – Novomatic 563 belt drive

Product description:

Garage door operator for domestic use – not suitable for commercial use!

For dry areas only.

Operator details

• 24 V DC gear drive
• Mains voltage 230 – 240 V / 50Hz AC, 280 W
• Maximum pull/push force 700 N
• Maximum opening speed 22 cm/s
• Maximum closing speed 17 cm/s
• Soft start/stop

Electronics control unit:

• Electrically monitored anti-opening security device
• Standby power 4W
• 7-segment display menu guided control with diagnostic display
• Microprocessor

Operator boom – Belt

• 1 part C-profile channel with toothed belt
• Suits residential doors up to 15m square
• Doors – rear mount up to 2250mm high
• Doors – front mount up to 2375mm high

Standard equipment:

• Two 2-button mini Novotron 502 hand transmitters 433 MHz with Keeloq rolling code
• Quick release operated from the inside
• Integral 40W garage light
• Radio operated
