Marantec Command 105 Interior Switch (Wired)

mao9610

Marantec Command 105 Interior Switch (Wired)

£15.00

Available

SKU: MAO9610 Categories: , ,
  • Description

Description

The Marantec Command 105 is an internal wall switch for operating Marantec garage door openers from within the garage when the remote control is not available.

Activation of the garage door opener is enabled by a single impulse from the pushbutton to open the door and another impulse from the button closes the door. providing it has already opened fully.

If the garage door opener receives an impulse during opening or closing. the door will stop until a further command is received.

Supplied with a 7 metre cable fitted with telephone jack style plugs to suit Marantec openers only

Application

  • Impulse
  • With one LED each for door ‘Open’/door ‘Close’ to indicate the door position
  • Impulse sequence ‘Open’-‘Stop’-‘Close’
  • For all Marantec operator systems with system cabling

Package

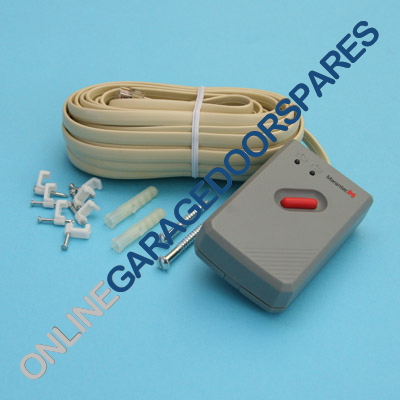

  • Interior pushbutton
  • System cable with system plug (7.000 mm) pre-cabled
  • Mounting material

Technical details/specifications

  • Measurements (WxHxD) – 47 x 73 x 24 mm
  • Weight – 0.3kg
  • Protection category – IP 00 (only for dry premises)
  • Cabling – system cabling
